| Brand Name: | AHONY |
| Model Number: | eMarvel 160W |
| MOQ: | 10 pieces |
| Price: | $211.20/pieces 10-49 pieces |

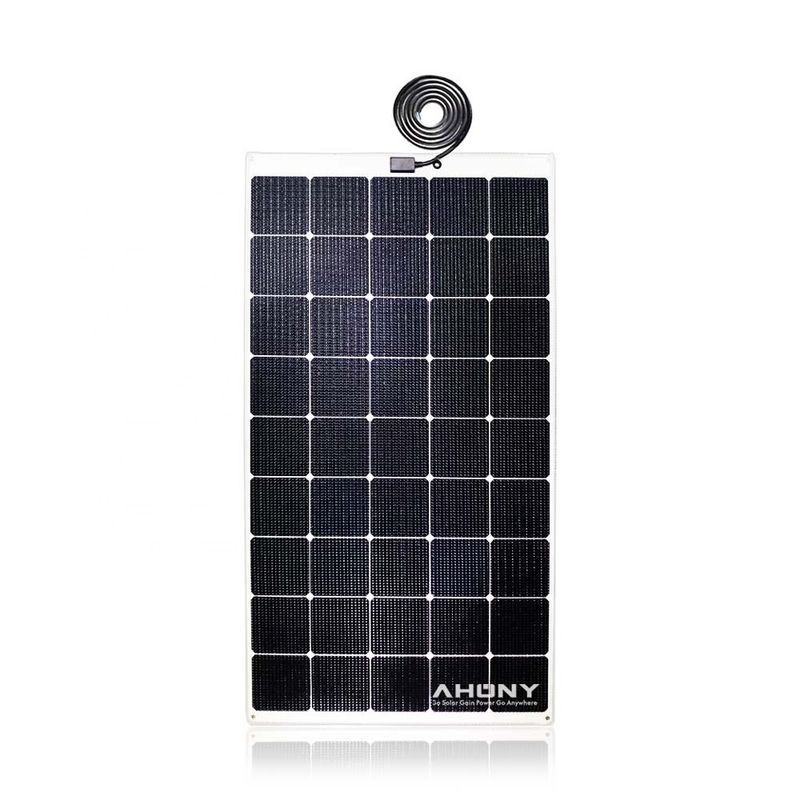

Solar Panel 160 Watt Marine Waterproof Rigid With ETFE Surface RV Solar Panel
| Model No. | eMarvel 160W |
| Maximum Power[Wp] | 160 |
| Solar Cell | Monocrystalline back contact solar cell |
| Cell Array[Pcs] | 5*9 |
| Cell Efficiency | 24.4% |
| Size[mm] | 660*1220*4 |
| Max Power Voltage Vmp[V] | 27.54 |
| Max Power Current Imp[A] | 5.81 |
| Open Circuit Voltage Voc[V] | 32.50 |
| Short Circuit Current Isc[A] | 6.27 |
| Net.Weight[kg] | 6.7 |
| NOCT[℃] | 46±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/C] | -0.3 |
| Temperature Coefficient Voc[[%/C] | -0.236 |
| Temperature Coefficient Isc[[%/C] | +0.058 |
| Maximum System Voltage[V] | 200 V |
| Maximum Series Fuse Rating | 0A<IR<2A |
| Safety Class | A |
| Certification | CE,RHHS,ISO9001,SGS,IEC |
| Flame retardancy | UL 94 VTM-0 |
| Standard Test Conditions | STC:1000W/m2, AM 1.5 and cell temp 25℃ |
